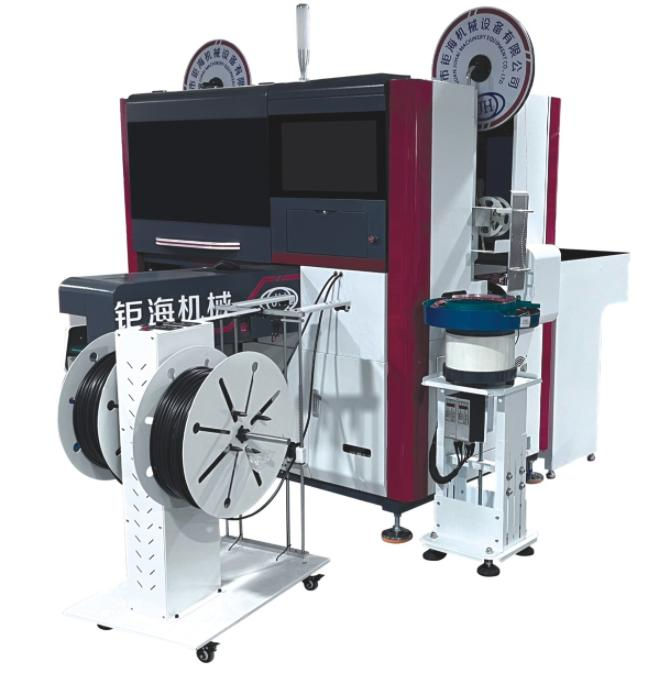

JH09B Fully Automatic Dual -End Crimping Machine
Product Highlight：
1、Automation:Auto wire feed/cut,dual-end crimping,B-end twist/tinning with integrated QC.
2、High Output:Processes upto 24 wires simultaneouslyvia servo system.
3、Compatibility :0.8、1.0、1.2、1.25、1.5、2.0、2.5、3.96 mm housings; supports multiple wire types.
4、User-Friendly:Touchscreen operation,minimal training required.
5、Quick Changeover:2P-2oP housing adaptation(tool-less).
6、Reliability:Premium servo,HIWIN guides,TBI screws.
7、Auto-Sorting:Identifies OK/NG products.
8、Customization:Optionaltwisting/markingforstandard/special orders
Machine Main Specification：
|
Model |
JH09B Fully Automatic Dual -End Crimping Machine |
|
Standard Feature |
Auto wire feed/cut;A/B-end:strip/crimp/insert(twist/tin optional) |
|
Optional Function |
Pressure/Dinspection4/eveltwist,tubingmarking，lasercoding |
|
Inspections |
Material detection,visioninspection(insertion/color) |
|
Production Capacity |
Wires:350-400cycles/hr(24terminals/cycle,≤200mm)Ribboncables:280-300 cycles/hr(24terminals/cycle,≤200mm) |
|
Cutting Length |
Dual-terminal wires:35-800mm(custom) Single-terminalwires:25-800mm Ribbon cables:60-800mm(custom) |
|
Cutting Accurancy |
±0.1mm+0.1%of length |
|
Case distance |
0.8-3.96mm (2P-12P) |
|
Wire range |
AWG#32-AWG#18 |
|
Stripping/Tinning |
A/B-end Strip:0-6mm B-end :4-6mm, conductor :0.5-6mm tin (customizable ) |
|
Air Pressure |
0.5-0.7MPa (clean, dry air) |
|
Machine Dimension |
1900×2000×1800mm(excl.twister/oven) |
|
Power Supply |
AC220V |
|
Machine weight |
About 980kg (excl.twister/oven) |
|
Main component configuration |
Servo/steppermotors(Inovance/Leadshine),TBl screws,HIWINrails,Airtaccylinders,self-developed PLC, Omron/Hikvision sensors |
