JH Tape Wrapping Machine Series
JH Tape Wrapping Machine Series

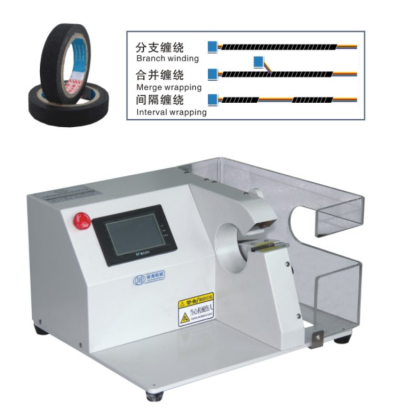

JH-303 Semi-Automatic Tape Wrapping Machine
Product Highlights:
This machine is suitable for tape wrapping of automotive wiring harnesses, electronic wires, and other cable bundles. The operator manually positions the tape head, and foot pedal control allows for spot wrapping or continuous straight wrapping as needed. The process can be stopped at any time, and the wire can be manually repositioned to achieve the desired wrapping length.
Machine Main Specification：
Model | JH-303 Semi-Automatic Tape Wrapping Machine |
Wire Diameter | Ø3 mm - 25 mm |
Winding Length | Infinite length |
Applicable Tape | PVC, Vinyl, Fabric, Felt, Tape, etc. (without release paper) |
Tape Core Inner Hole | Ø38, Ø32 (Optional) |
Tape Width | 9 - 30 mm |
Tape Outer Diameter (Max) | 110 mm |
Power Supply | AC 220V 50/60 Hz |
Function | Tape wrapping suitable for short-distance wire harnesses |
Machine Size (L×W×H) | 430 × 380 × 260 mm |
Weight | 27 kg |
JH-303 Semi-Automatic Tape Wrapping Machine

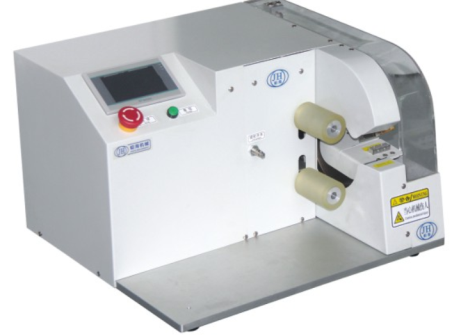

Model | JH-303Q Fully Automatic Tape Wrapping Machine |
Wire Diameter | Ø3 mm - 30 mm |
Winding Length | Infinite length |
Applicable Tape | Velvet, Wax Adhesive Tape, Electrical Tape (without release paper) |
Tape Core Inner Hole | Ø38, Ø32 (Optional) |
Tape Width | 5 - 25 mm |
Tape Outer Diameter (Max) | 110 mm |
Power Supply | AC 220V 50/60 Hz |
Function | Tape wrapping suitable for long-distance wire harnesses |
Machine Size (L×W×H) | 560 × 500 × 350 mm |
Weight | 45 kg |

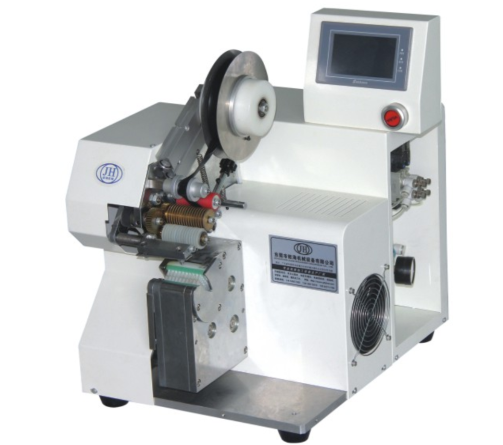

JH-503 Automatic Spot Tape Wrapping Machine
Features:
This machine adopts PLC control system and features automatic tape feeding and fixed-point wrapping. It is compatible with both release paper-backed and non-release paper tapes. The number of wrapping cycles and speed are adjustable, with production output displayed in real time. The full touchscreen interface ensures simple and convenient operation.
Model | JH-503 Automatic Spot Tape Wrapping Machine |
Tape Width | 25 - 45 mm (Other sizes customizable) |
Feeding Length | Approx. 55 mm (adjustable) |
Wire Diameter | 3 - 8 mm (with matching rotary drum) |
Power Supply | AC 220V 50 Hz |
Weight | 63 kg |
