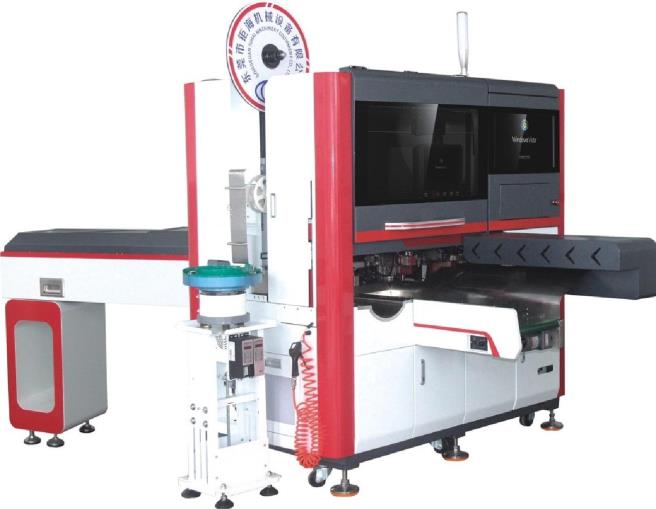

JH-12 Fully Automatic Variable-Length Single-End Crimping Machine
JH-12 Fully Automatic Variable-Length Single-End Crimping Machine
JH-12 Fully Automatic Variable-Length Single-End Crimping Machine
Product Highlight：
1、Automation:Auto wire feeding,cutting,crimping/insertion,variable-length termination with integrated QC monitoring.
2、High Output:Processes up to 24 wires simultaneously via servo system.
3、Wide Compatibility:0.8、1.0、1.2、1.25、1.5、2.0、2.5、3.96 mm housings;supports multiple wire types(electronic/ribbon/shielded etc).
4、User-Friendly:Touchscreen operation,minimal training required.
5、Quick Changeover:2P-20P housing adaptation without tool change(recipe-based).
6、Reliability:Premium servo,rails &ball screws ensure stability.
7、Auto-Sorting:Identifies OK/NG products automatically.
8、Customization:Optional twisting/marking functions for standard/special orders.

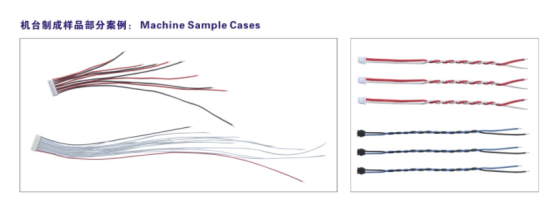

Machine Main Specification：
Model | JH-12 Fully Automatic Variable-Length Single-End Crimping Machine |
Standard Feature | Auto wire feeding/cutting; A-end: strip/twist/tin (half-strip optional), variable length; B-end: strip/crimp/insert |
Optional Function | Rear-end tinning, terminal pressure/CCD inspection, wire arranging, 4/6-level twisting, tubing, housing/wire marking, laser marking, robotic loading |
Inspections | Rosin/solder/wire presence, wire knots, terminal/housing detection, air pressure alarm, motor fault, CCD vision (strip/insertion/color sequence) |
Production Capacity | Compatible with 11 different lengths; Max. length difference ≤300mm (customizable for >300mm) |
Cutting Length | Electronic wires: 35–800mm (customizable) |
Cutting Accuracy | ±0.1mm + 0.1% of length |
Compatible Housing Pitch | 0.8, 1.0, 1.2, 1.25, 1.5, 2.0, 2.5, 2.54, 3.0, 3.96mm (2P–12P) |
Applicable Wire Range | AWG#32-AWG#18 |
Strip&Tin Dimensions | A-end: strip 0–9mm, conductor 4–9mm, tin 0.5–9mm |
Air Pressure | 0.5-0.7MPa (clean, dry air) |
Machine Dimension | 3500 × 1750 × 1800 mm (excluding twister/oven) |
Power Supply | AC220V |
Machine weight | Approx. 700 KG (Excluding wire frame & oven) |
Main component configuration | Servo/stepper motors (Inovance/Leadshine), TBI ball screws, HIWIN rails, Airtac cylinders, self-developed PLC, Yihada standard parts, Panasonic/Jiazhun sensors, Omron sensors, Hikvision vision system |
