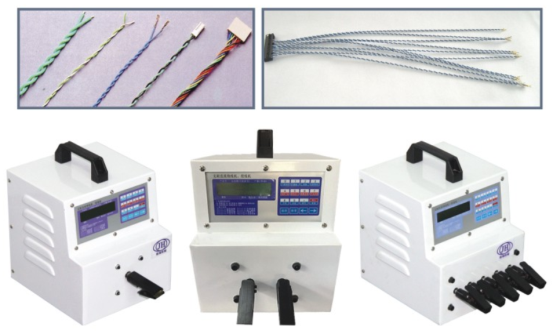

JH-99 High speed twist bunching machine
JH-99 High speed twist bunching machine
Product Highlights:
1. Specially designed for twisting electronic wires, it delivers uniform output and stable quality. Capable of twisting 1 to 5 sets of electronic wires simultaneously.
2. Twisting speed and duration can be adjusted according to customer requirements, with forward and reverse rotation settings available.
3. Features automatic wire twist counting. Simple to operate and highly reliable with minimal risk of failure.
Machine Main Specification：
Model | JH-99 Single Spindle | JH-99 Dual Spindle | JH-99 Five Spindle | JH-99A Auto Clamp |
|---|---|---|---|---|
Voltage | AC 220V | AC 220V | AC 220V | AC 220V |
Power | 90 W | 90 W | 120 W | 90 W |
Max Speed | 5000 rpm | 4000 rpm | 2000 rpm | 4500 rpm |
Weight | 8 kg | 10 kg | 12 kg | 10 kg |
Size (L×W×H) | 220 × 220 × 300 mm | 220 × 220 × 300 mm | 220 × 220 × 300 mm | 260 × 220 × 300 mm |
