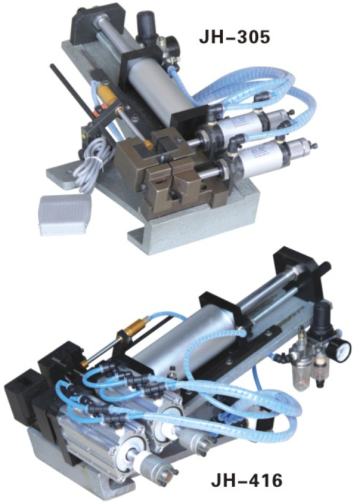

JH-305,310,315,330,416 Pneumatic-Electric Stripping Machines
JH-305/310/315/330/416 Pneumatic-Electric Stripping Machines
Product Highlights:
1. Ergonomic Inclined-back Design: Ensures comfortable operation and reduces operator fatigue.
2. Double-acting Cylinder: Eliminates concerns about spring breakage for enhanced reliability.
3. Integrated Oil-Mist Lubricator: Automatically supplies oil to the cylinder at timed intervals, reducing internal wear and extending service life. Unique sliding mechanism ensures smooth reciprocating motion and precise cutting/stripping.
4. Pneumatic-Electric Control: Lightweight and responsive for effortless operation.
5. Adjustable Structure: Can be fine-tuned according to wire thickness for versatile applications.
6. Ideal for Small-Diameter & Short Wires: Suitable for processing AC/DC power cords, computer cables, electronic wires, multi-core cables, and more.
Machine Main Specification：
Model | JH-305 | JH-310 | JH-315 | JH-330 | JH-416 |
|---|---|---|---|---|---|
Cylinder Stroke | 50 mm | 100 mm | 150 mm | 300 mm | 150 mm |
Wire Diameter | ≤ 6 mm | ≤ 10 mm | ≤ 15 mm | ≤ 15 mm | ≤ 30 mm |
Air Pressure | 3-7 kg/cm² | 3-7 kg/cm² | 3-7 kg/cm² | 3-7 kg/cm² | 5-8 kg/cm² |
Power | AC 220V | AC 220V | AC 220V | AC 220V | AC 220V |
Weight | 17 kg | 24 kg | 30 kg | 55 kg | 60 kg |
Size (L×W×H) | 360×370×235 mm | 470×420×270 mm | 580×400×310 mm | 930×450×415 mm | 690×460×345 mm |
