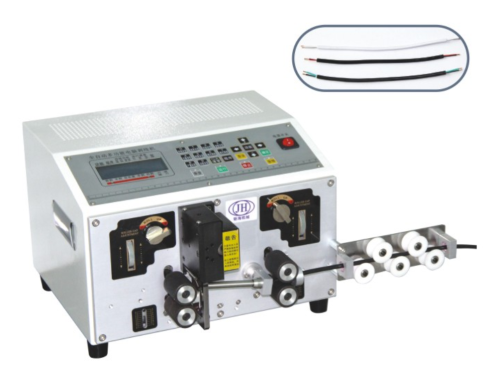

JH-360＆360TL Fully Automatic Computerized Wire Cutting - Stripping Machine
JH-360＆360TL Fully Automatic Computerized Wire Cutting & Stripping Machine
Product Highlights: This machine is suitable for various types of wires, including electronic wires, power cords, data cables, security wires, shielded wires, and more.
Machine Main Specification：
Model | JH-360 Fully Automatic Computerized Wire Cutting & Stripping Machine | JH-360TL Fully Automatic Computerized Wire Cutting & Stripping Machine (Lift Roller Type) |
Size (W×D×H) | 570 × 280 × 410 mm | 570 × 280 × 410 mm |
Weight | 33 kg | 35 kg |
Power Supply | AC 220V (50/60 Hz) | |
Stripping Length | Front: 0 - 80 mm | Front: 0 - 200 mm |
Cutting Length | 1 - 999.9 mm | 1 - 99999.9 mm |
Cutting Core Range | 0.1 - 10 mm² | 0.1 - 10 mm² |
Conduit Inner Hole Diameter | 4 mm, 6 mm, 8 mm | 4 mm, 6 mm, 8 mm |
Tool Material | Imported High-Speed Steel | |
Drive Method | Four-Wheel, Two Drives | |
Work Output | 2000 - 3000 pcs/h | 1500 - 2000 pcs/h |
