JH Automatic Coiling and Tying Machine Series
JH Automatic Coiling and Tying Machine Series

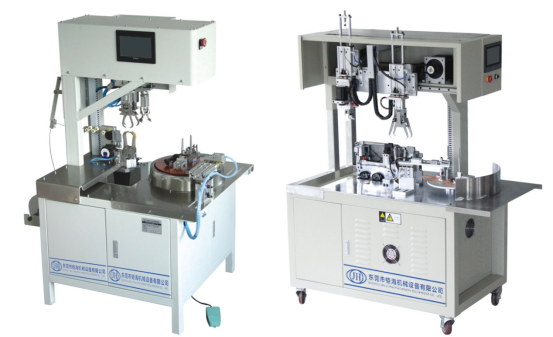

JH-81 automatic winding wire winding machine（Figure-8 Winding）
JH-85 automatic winding wire winding machine（Loop Winding）
Product Highlights:

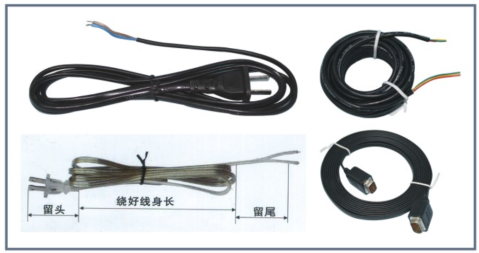

This machine is suitable for coiling and tying various types of cables — such as AC power cords, DC power cords, USB data cables, video cables, and HDMI high-definition cables — into bundles using rubber-coated iron core ties. It can also be used in other applications requiring bundling with rubber-coated iron core ties, such as in the clothing hanger industry.
Machine Main Specification：
Model | JH-81 | JH-82 | JH-85 | JH-86 |
|---|---|---|---|---|
Winding Appearance | Small Figure-8 Single Tie | Medium Figure-8 Single Tie | Small Circle Double Tie | Medium Circle Double Tie |
Applicable Wire Diameter | ≤ 4 mm (Wire Dependent) | ≤ 10 mm (Wire Dependent) | ≤ 4 mm (Wire Dependent) | ≤ 10 mm (Wire Dependent) |
Applicable Wire Length | ≤ 3 m (Wire Dependent) | ≤ 8 m (Wire Dependent) | ≤ 3 m (Wire Dependent) | ≤ 8 m (Wire Dependent) |
Winding Pitch | 45 - 70 mm | 70 - 200 mm | 50 - 120 mm | 80 - 180 mm |
Bundle Diameter | ≤ 18 mm | ≤ 40 mm | ≤ 25 mm | ≤ 40 mm |
Head Length Retention | 0 - 130 mm | 0 - 150 mm | 0 - 120 mm | 40 - 130 mm |
Tail Length Retention | 0 - 130 mm | 0 - 150 mm | 0 - 120 mm | 40 - 130 mm |
Efficiency | 1600 pcs/hour | 1200 pcs/hour | ||
Applicable Tie Band | 2 mm Rubber-coated Iron Core Tie Wire | |||
Air Pressure Requirement | 0.5 - 0.6 MPa (Clean dry air source required) | |||
Machine Size (L×W×H) | 1040 × 800 × 1570 mm | 1040 × 800 × 1570 mm | 1200 × 800 × 1600 mm | 1200 × 800 × 1600 mm |
Weight | 210 kg | 210 kg | 230 kg | 230 kg |
