JH Automatic Labeling Machine Series
JH Automatic Labeling Machine Series

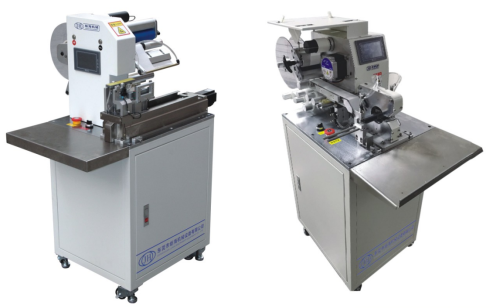

JH-250 Automatic Wire Fold-over Labeling Machine
JH-240S Automatic Roll Labeling Machine
Product Highlights:
This automatic labeling machine can automatically feed labels, peel them, and fold them in half before applying them to wires.
1. Compact, clever, and practical design.
2. Delivers higher production efficiency and quality. The operator places the wire, and the machine automatically positions it and feeds the label.
3. Automatically peels and applies labels onto the wire.
4. Provides high label application accuracy and faster operating speed.
Machine Main Specification：
Model | JH-250 Automatic Wire Fold-over Labeling Machine | JH-240S Automatic Roll Labeling Machine |
Power Supply | AC 220V 50/60 Hz | AC 220V 50/60 Hz |
Labeling Speed | Approx. 1200-1600 pcs/hour (depending on product and operator proficiency) | Approx. 800-1200 pcs/hour (depending on product and operator proficiency) |
Function | Automatically delivers, peels, folds in half, and applies labels onto wires | |
Applicable Wire Diameter | 4 - 10 mm | 3 - 9 mm |
Air Pressure | 0.6 - 0.8 MPa (clean and dry air source required) | |
Labeling Accuracy | ±0.2 mm (excluding product tolerance) | ±0.2 mm (excluding product tolerance) |
Printing Function | Optional | Optional |
Machine Size | 690 × 430 × 1050 mm (customizable) | 650 × 420 × 1000 mm (customizable) |
Weight | 79 kg | 75 kg |
