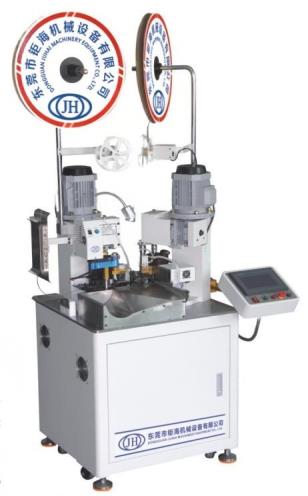

JH-01 Fully Automatic Dual-Head Terminal Crimping Machine
JH-01 Fully Automatic Dual-Head Terminal Crimping Machine
JH-01 Fully Automatic Dual-Head Terminal Crimping Machine
Product Highlight：
1. A versatile automated machine integrating cutting,stripping,and dual-end terminal crimping into a single unit.
2. Advanced software and touchscreen technology enable convenient operation,with all machine parameters adjustable directly via the display interface.
3. Robust,durable,stable,efficient,and energy-saving.Machine components undergo heat treatment(blackening)and hard anodizing for enhanced durability.
4. Dual-wheel wire feeding mechanism prevents issues with inconsistent feed length and wire indentations.
5. Comprehensive detection functions include:missing wire detection,wire knot detection, crimping detection,and air pressure detection.Compatible with all mainstream pressure monitoring systems on the market.
6. The crimping unit utilizes an ultra-quiet terminal press,featuring low noise levels and consistent force application.It supports horizontal,vertical,and flag-type dies.
Machine Main Specification：
Model | JH-01 Fully Automatic Dual-Head Terminal Crimping Machine |
Power Supply | AC 220V 50/60Hz (Single-phase) |
Standard Functions | Wire cutting, Single/Double-end stripping, Single/Double-end crimping |
Production Rate | Cutting speed: 4,100 pieces/hour (≤100mm) |
Wire Range | AWG #14 - #32 |
Cutting Length | 45-99999.9 mm |
Cutting Accuracy | ≥1m: ≤±0.002% |
Stripping Length | Front end: 0-10 mm; Rear end: 0-13 mm |
Crimping Force | 2.0T (Other pressures customizable) |
Twisting Length | N/A |
Air Pressure | 0.4-0.6 MPa (Requires stable, clean, dry air source) |
Detection Systems | Wire presence, Terminal crimping presence, Wire jam, Low air pressure |
Machine Dimensions (W×L×H) | 650 × 700 × 1450 mm |
