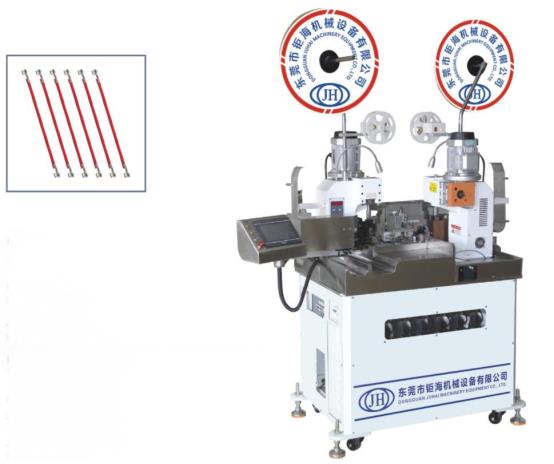

JH-01G Automatic double head terminal making machine
JH-01G Automatic double head terminal making machine
JH-01G Automatic double head terminal making machine
Product Highlight：
1.The equipment primarily utilizes imported components to ensure precise execution of wire cutting,stripping,and terminal crimping.It features simple operation and stable performance.
2.Wire feed roller tension and cutter depth are fully computer-adjusted.
3.The stripping length for the entire process is set directly via a touch-sensitive membrane switch with a Chinese menu interface.Key advantages include rapid technical parameter adjustment,short setup times,and user-friendly operation.It is compatible with both horizontal and vertical OTP dies.
4.Motor:Mitsubishi Servo.
Machine Main Specification：
JH-01G Fully Automatic Dual-Head Terminal Crimping Machine | |
Power Supply | AC 220V 50/60Hz (Single-phase) |
Standard Functions | Wire cutting, Single/Double-end stripping, Single-end crimping, Single-end twisting |
Wire Range | AWG #32 - #20 |
Cutting Length | 30-9999 mm |
Cutting Accuracy | ±0.2mm + 0.2% × L (L = Cutting Length) |
Stripping Length | 1-9 mm |
Crimping Force | 2.5T |
Twisting Length | 3-12 mm (for AWG #32-#20) |
Air Pressure | 0.49-0.64 MPa (Clean, dry air required) |
Detection Functions | Wire presence detection, Motor and component abnormality monitoring |
Machine Dimensions (L×W×H) | 1060 × 800 × 1330 mm (excluding protrusions) |
Weight | Approx. 350 kg |
