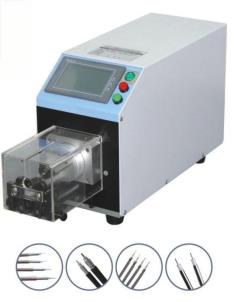

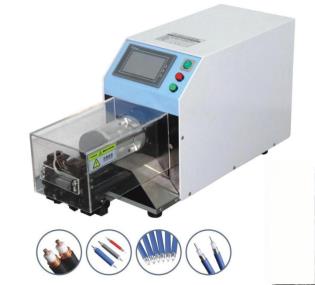

JH Semi-Automatic Coaxial Wire Stripping Machine Series

wechat_2025-10-23_085024_192 wechat_2025-10-23_085043_420

Product Highlights:

1. Suitable for stripping various flexible and semi-flexible coaxial cables, charging cables, medical wires, etc., in the communications, medical, and automotive industries. Provides clean cuts and precise stripping without damaging the conductor.

2. Features a user-friendly human-machine interface for simple and intuitive operation. Supports up to 9-layer stripping and can store up to 99 processing programs.

3. Equipped with a rotary cutter head and a four-blade rotating knife design, enhancing stripping stability and extending tool life. Utilizes servo motors, precision ball screws, and a multi-point motion control system for stable and efficient performance.

4. Cutters are made of imported tungsten steel with a titanium alloy coating, ensuring sharpness and long-term durability.

5. Capable of meeting specialized requirements such as multi-layer stripping, multi-stage stripping, and automatic continuous start.

Machine Main Specification：

Item	JH Semi-Automatic Coaxial Wire Stripping Machine Series
Model	JH-6806	JH-6806D	JH-8608	JH-2515	JH-2520	JH-3515	JH-4520
Wire Diameter	0.8 - 7 mm	1.5 - 9.5 mm	1.5 - 18 mm	2.0 - 23 mm	2.0 - 23 mm	3.0 - 30 mm	6.0 - 40 mm
Cutting Depth Unit	0.01 mm	0.01 mm	0.01 mm	0.01 mm	0.01 mm	0.01 mm	0.01 mm
Working Efficiency	700 - 1200 PCS/H	700 - 1200 PCS/H	400 - 800 PCS/H	300 - 800 PCS/H	300 - 800 PCS/H	200 - 500 PCS/H	200 - 500 PCS/H
Max. Stripping Length	56 mm	65 mm	90 mm	150 mm	200 mm	150 mm	200 mm
Max. Stripping Layers	9 Layers	9 Layers	9 Layers	9 Layers	9 Layers	9 Layers	9 Layers
Dimensions (L×W×H)	600 × 185 × 280 mm	600 × 185 × 280 mm	720 × 280 × 350 mm	920 × 220 × 400 mm	1000 × 225 × 400 mm	1040 × 280 × 550 mm	1160 × 280 × 550 mm
Weight	24 kg	25 kg	40 kg	45 kg	50 kg	60 kg	70 kg
Power Supply	AC 220V 50/60 Hz	AC 220V 50/60 Hz	AC 220V 50/60 Hz	AC 220V 50/60 Hz	AC 220V 50/60 Hz	AC 220V 50/60 Hz	AC 220V 50/60 Hz
Power Rating	400 W	400 W	600 W	600 W	800 W	800 W	800 W
