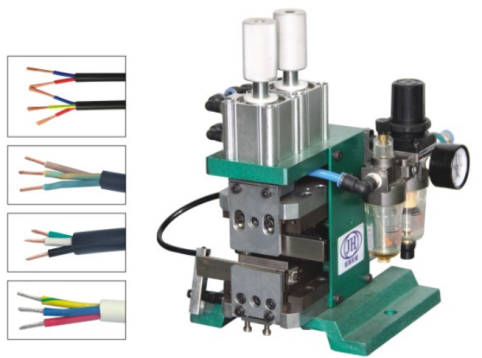

JH-3FN＆4FN Multi-Core Wire Stripping - Twisting Machine
JH-3FN，4FN Multi-Core Wire Stripping & Twisting Machine
Product Highlights:
1. This machine is suitable for terminal stripping and twisting of computer peripheral cables, ribbon cables, power cords, etc.
2. The compact and sophisticated design makes the machine structure tight, small, and easy to operate.
3. The multi-wire synchronous stripping and twisting function doubles work efficiency and delivers perfect quality.
Machine Main Specification：
Item | JH-3FN Vertical Stripping Machine | JH-4FN Vertical Stripping Machine |
|---|---|---|
Model | JH-3FN | JH-4FN |
Stripping Length | 3-25 mm | 3-25 mm |
Wire Diameter | AWG #32 - #16 | AWG #32 - #18 |
Air Pressure | 3-7 kg/cm² | 3-7 kg/cm² |
Power | AC 110V/220V | AC 110V/220V |
Weight | 13 kg | 14 kg |
Dimensions (L×W×H) | 330 × 240 × 290 mm | 330 × 400 × 345 mm |
