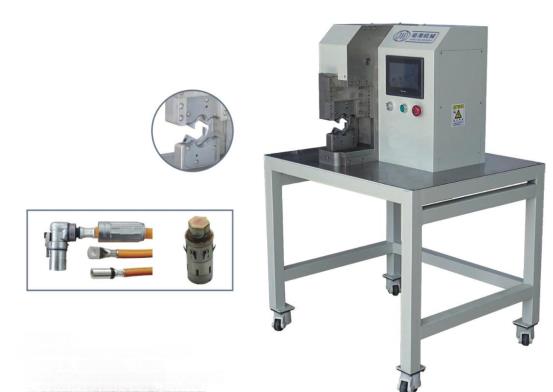

JH-6F Elbow Type Hexagon Crimping Press (No Die Change Required)
JH-6F Elbow Type Hexagon Crimping Press (No Die Change Required)
JH-6F Elbow Type Hexagon Crimping Press (No Die Change Required)
Product Features:
1. Suitable for crimping non-standardized terminals or crimp-type terminals.
2. No die change required; equipped with a servo control system for high accuracy.
3. Separate crimping interface, suitable for mid-span connections and crimping of new energy right-angle terminals.
4. Allows position adjustment based on the actual cross-sectional area of the wire, providing a clearer field of view.
5. Compact structure, space-saving design, and low operational noise.
Machine Main Specification：
Model | JH-6F Elbow Type Hexagon Crimping machine (No Die Change Required) |
Wire Diameter Range | 6 - 120 mm² |
Pressure | 200 kN |
Maximum Caliber | 38 mm |
Crimping Width | 12.5 mm (Customizable) |
Power Supply | AC 220V, 50 Hz |
Power | 2300 W |
Size (L x W x H) | 700 × 860 × 1260 mm |
Weight | 160 kg |
