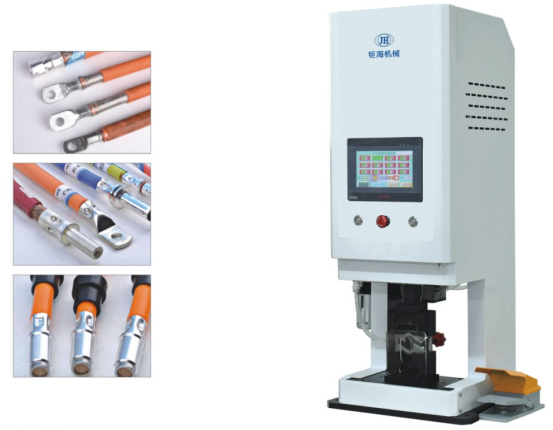

JH-10T＆20T Hydraulic terminal machine
JH-10T/20T Hydraulic terminal machine
JH-10T/20T Hydraulic terminal machine
Product Features:
1. Integrated stripping and crimping completed in one cycle for maximum efficiency. Features frequency conversion control for soft start/stop operation, eliminating mechanical wear.
2. Modular cartridge die and independent stripping unit allow quick die changes and adjustable strip depth for enhanced production flexibility.
3. Supports independent stripping and terminal crimping operations with automatic/manual modes. All motion timings are adjustable based on wire and terminal specifications.
4. Full PLC program control with 7-inch HMI touchscreen interface. Pneumatic components and valves ensure long-term durability.
5. Dedicated wire scrap recovery system maintains clean working environment.
Machine Main Specification：
JH-10T/20T Hydraulic terminal machine | |||
Model | JH-10T Hydraulic Terminal Crimping Machine | JH-20T Hydraulic Terminal Crimping Machine | |
Power Supply | 220V | 220V | |
Display Mode | 7-inch True Color Touchscreen | 7-inch True Color Touchscreen | |
Equipment Function | Large Square Terminal Crimping (Hexagon/B-Type) | Large Square Terminal Crimping (Hexagon/B-Type) | |
Effective Travel | 40 MM | 40 MM | |
Crimping Range | 2.5 - 95 mm² | 2.5 - 180 mm² (Die Change Required) | |
Control Mode | Hydraulic, Electric, Pneumatic | Hydraulic, Electric, Pneumatic | |
Applicable Mould | Hexagon Dies, Quadrangle Dies, Punching Dies | - | |
Machine Dimensions | 450 × 450 × 1050 mm | 550 × 550 × 1250 mm | |
Machine Weight | Approx. 140 KG | Approx. 220 KG | |
