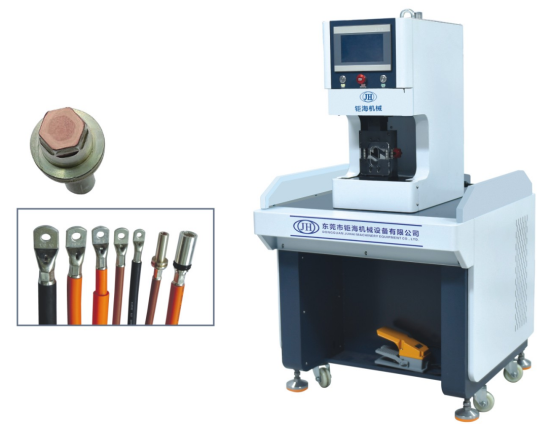

JH-30T＆50T Servo terminal machine

Product Features:

1. Integrated stripping and crimping completed in one cycle for maximum efficiency. Features frequency conversion control for soft start/stop operation, eliminating mechanical wear.

2. Modular cartridge die and independent stripping unit allow quick die changes and adjustable strip depth for enhanced production flexibility.

3. Supports independent stripping and terminal crimping operations with automatic/manual modes. All motion timings are adjustable based on wire and terminal specifications.

4. Full PLC program control with 7-inch HMI touchscreen interface. Pneumatic components and valves ensure long-term durability.

5. Dedicated wire scrap recovery system maintains clean working environment.

Machine Main Specification：

Model

JH-30T＆50T Servo terminal machine

Model	JH-30T Servo Terminal Machine	JH-50T Servo Terminal Machine
Power Supply	AC 220V	AC 380V
Display Mode	7-inch True Color Touch Screen
Equipment Function	Large Square Terminal Crimping (Hexagon/B-Type)
Effective Travel	35 mm	60 mm
Crimping Range	2.5 - 300 mm² (Two sets of dies required, blade thickness below 15.00 mm)	2.5 - 400 mm² (Die replacement required, blade thickness below 25.00 mm)
Control Mode	3800 W	5500 W
Applicable Mould	Hexagon Dies, Quadrangle Dies, Punching Dies
Machine Dimensions	750 × 720 × 1400 mm (L × W × H)	850 × 950 × 1700 mm (L × W × H)
Machine Weight	Approx. 340 kg	Approx. 700 kg
Throughput	600 - 1200 PCS/H (Depending on operator proficiency)
Start Mode	Manual / Foot Pedal	Manual / Foot Pedal
