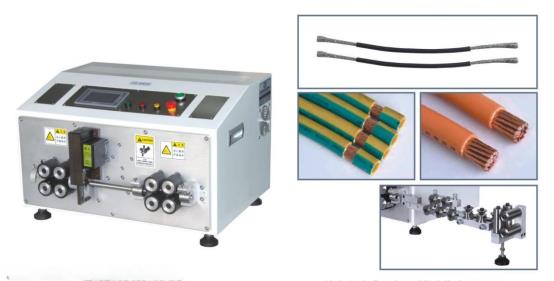

JH-35P，70 - 70P Cable Cutting and Stripping Machine
JH-35P，70 & 70P Cable Cutting and Stripping Machine
JH-35P，70 & 70P Cable Cutting and Stripping Machine
Product Highlight：
1. This machine is specifically designed for the automotive, sensor, power, and photovoltaic industries, particularly for processing wires used in electrical control cabinets and battery boxes. It can automatically perform end stripping and mid-span stripping on entire wire coils to the required length without damaging the insulation or conductor. Belt-type wire feeding ensures high precision, significantly improving efficiency.
2. The machine supports multiple working modes, including long wire, short wire, sheathed wire, and multi-stage stripping functions, enabling it to meet various wire stripping requirements in one machine.
3. Display: Touchscreen interface with switchable Chinese and English languages.
4. The machine utilizes a PLC control system to generate pulses, enhancing cutting accuracy.
5. Operation Mode: Supports semi-automatic manual operations such as length measurement, cutting, multi-layer stripping, and mid-span stripping, ensuring user-friendly operation.
Machine Main Specification：
Model | JH-35P Cable Cutting Machine (Belt Type Feeding) | JH-70 Cable Cutting Machine (Roller Type Feeding) | JH-70P Cable Cutting Machine (Belt Type Feeding) |
Function | Wire Cutting, Single-End Stripping, Double-End Stripping | ||
Cutting Core Range | 1.5 - 35 mm² | 6 - 70 mm² | 6 - 70 mm² |
Capacity | 800 - 1500 pcs/h | 800 - 1200 pcs/h | |
Cutting Length | 1 mm - 99999.9 mm | 1 mm - 99999.9 mm | 1 mm - 99999.9 mm |
Power Supply | AC 220V 50/60 Hz (Single-Phase) | ||
Stripping Length | Front: 0 - 250 mm | Front: 0 - 300 mm | |
Cutter Control | Stepper Motor | ||
Additional Functions | Automatic Wire Feeding, Automatic Wire Retraction, Timed Start | ||
Drive Method | 8-Wheel Independent Drive, Synchronous Belt Dual-Pressure Feeding | ||
Conduit Bore | φ5 mm, φ8 mm, φ12 mm, φ16 mm | φ8 mm, φ10 mm, φ12 mm, φ16 mm, φ24 mm | |
Tool Material | Imported High-Speed Steel | Imported High-Speed Steel | Imported High-Speed Steel |
Body Size (W×L×H) | 560 × 520 × 450 mm | 620 × 540 × 410 mm | 720 × 540 × 410 mm |
Body Weight | Approx. 70 kg | Approx. 90 kg | Approx. 98 kg |
