JH-45＆45GZ Automatic Metering, Sorting, Coiling - Tying Machine

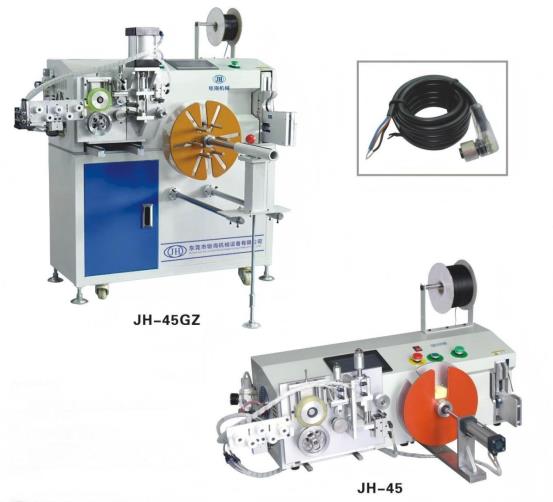

JH-45/45GZ Automatic Metering, Sorting, Coiling & Tying Machine
Product Highlights:
All-in-One Cable Processing Solution: Cutting, Measuring, Coiling & Tying
This advanced machine integrates automatic length measurement, precise cutting, neat coiling, and secure tying into one efficient system. Designed for both performance and ease of use, it ensures high-speed operation while delivering consistently organized and professional cable bundles. Ideal for streamlining production and reducing manual effort in wire harness assembly.
Key Features:
- ✅ Automatic length measurement & cutting
- ✅ Tidy coiling with adjustable patterns
- ✅ Integrated tying for finished bundles
- ✅ User-friendly controls & sleek design
- ✅ Boosts productivity while saving time and labor
Simplify your workflow. Elevate your output.
Machine Main Specification：
Model | JH-45D Automatic Metering, Sorting & Coiling Machine | JH-45 Automatic Metering, Sorting, Coiling & Tying Machine | JH-45GD Cabinet-type Metering, Sorting & Coiling Machine | JH-45GZ Cabinet-type Metering, Sorting, Coiling & Tying Machine |
|---|---|---|---|---|
Machine Function | Automatic metering, sorting, and winding | Automatic metering, sorting, winding, and tying | Automatic metering, sorting, and winding | Automatic metering, sorting, winding, and tying |
Winding Range | Custom shaft cores based on product | |||
Applicable Diameter | 1-8 mm | 1-8 mm | 1-10 mm | 1-10 mm |
Power Supply | AC 220V 50/60 Hz | AC 220V 50/60 Hz | AC 220V 50/60 Hz | AC 220V 50/60 Hz |
Winding Load Bearing | 1.5 kg | 1.5 kg | 3.0 kg (customizable for larger weight) | |
Bundle Diameter | Not available | 18-45 mm | Not available | 18-45 mm (40-80 mm customizable) |
Dimensions (L×W×H) | 700 × 750 × 360 mm | 1100 × 440 × 430 mm | 1000 × 940 × 1140 mm | 1000 × 610 × 1100 mm |
Machine Weight | 80 kg | 90 kg | 150 kg | 160 kg |
