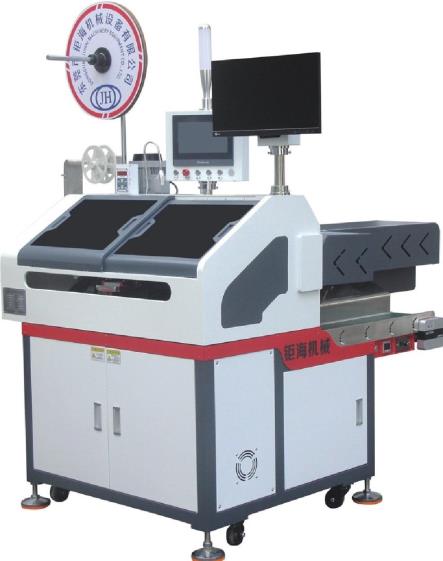

JH-05B Fully Automatic Single-End Crimping Machine
JH-05B Fully Automatic Single-End Crimping Machine
JH-05B Fully Automatic Single-End Crimping Machine
Product Highlight：
1、Automation-Auto wire feed/cut,single-end crimp/insert with opposite-end twist/tin,integrated QC.
2、High Output:Processes up to 24 wires simultaneously via servo system.
3、Compatibility0.8, 1.0, 1.2, 1.25, 1.5, 2.0, 2.5, 2.54, 3.0, 3.96mm housings; electronic/ ribbon/ twin/shielded wires.
4、User-Friendly-Touchscreen operation,multi-machine control.
5、Quick Changeover-2P-20P housing adaptation(tool-less).
6、Reliability-Premium servo,HIWIN guides,TBI screws.
7、Auto-Sorting-OK/NG separation.
8、Customization-Optional twist/marking functions.

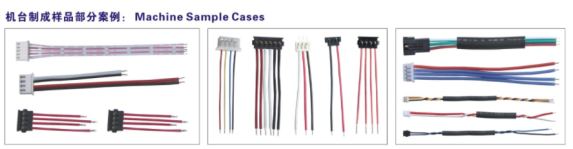

Machine Main Specification：
Model | JH-05B Fully Automatic Single-End Crimping Machine |
Standard Feature | Wire cut, A/B-end strip, A-end crimp/insert, B-end strip/twist/tin (half-strip optional) |
Optional Function | Pressure/CCD inspection, wire arranging, 4-12 level twist, marking, laser coding, robotic loading |
Inspections | Material presence, knots, terminal/housing detection, air pressure, motor status, CCD vision |
Production Capacity | Electronic wires: 350-400 cycles/hr (24 terminals/cycle, ≤200mm); Ribbon cables: 280-300 cycles/hr (24 terminals/cycle, ≤200mm) |
Wire Length | Electronic wires: 25-800mm (custom); Ribbon cables: 40-800mm (custom) |
Cutting Accuracy | ±0.1mm + 0.1% of length |
Compatible Housing Pitch | 0.8, 1.0, 1.2, 1.25, 1.5, 2.0, 2.5, 2.54, 3.0, 3.96mm (2P-12P) |
Applicable Wire Range | AWG#32-AWG#18 |
Stripping/Tinning | A-end: 0-6mm; B-end: 0-9mm strip, 4-9mm conductor, 0.5-9mm tin |
Air Pressure | 0.5-0.7MPa (clean, dry air) |
Machine Dimension | 1900×1300×1800mm (excl. twister/oven) |
Power Supply | AC220V |
Machine weight | Approx. 620 KG (Excluding wire frame & oven) |
Main component configuration | Servo/stepper motors (Inovance/Leadshine), TBI screws, HIWIN rails, Airtac cylinders, self-developed PLC, Omron/Hikvision sensors |
