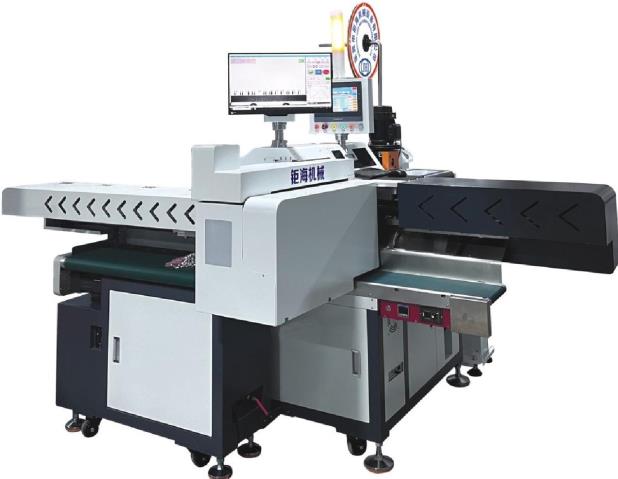

JH05B-12J Fully Automatic Single-End Crimping Twisting Machine
JH05B-12J Fully Automatic Single-End Crimping Twisting Machine
JH05B-12J Fully Automatic Single-End Crimping Twisting Machine
Product Highlight：
1、Automation:Auto wire feeding,cutting,crimping/insertion,twisting/tinning with QC monitoring.
2、High Output:Processes up to 24 wires simultaneously via servo system.
3、Wide Compatibility:Fits 0.8、1.0、1.2、1.25、1.5、2.0、2.5 mm housings &various wire types.
4、Easy Operation:Touchscreen interface,minimal training needed.
5、Quick Changeover:2P-20P housing adaptation without tool change.
6、Reliable:Premium servo,rails &ball screw components.
7、Auto Sorting:Identifies OK/NG products automatically.
8、Customizable:Supports marking &special configurations.

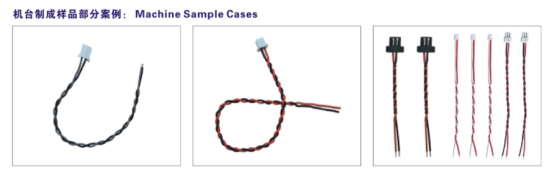

Machine Main Specification：
Model | JH05B-12J Fully Automatic Single-End Crimping Twisting Machine |
Standard Feature | Wire cutting, A/B-end stripping, A-end crimping/insertion; B-end stripping, twisting, tinning, braiding (half-strip optional) |
Optional Function | Terminal pressure detection, CCD inspection, wire arranging, marking (housing/wire), servo wire handling |
Inspections | Wire/terminal/housing presence, knots, air pressure, motor status, CCD (stripping/insertion/color sequence) |
Production Capacity | ≥4500 sets/h (2P housing, ≤200mm length) |
Cutting Length | Non-twisted: 25-800mm; Twisted: 30-600mm (customizable) |
Cutting Accuracy | ±0.1mm + 0.1% of length (depends on wire material) |
Applicable housing spacing | Twisted: 0.8-2.0mm (2P); |
Applicable Wire Range | AWG#32 - AWG#24 |
Twist Parameters | A-end: ≥8mm untwisted; B-end: 8-18mm untwisted |
Stripping/Tinning | A-end: 0-6mm strip; B-end: 0-9mm strip, 4-9mm conductor, 0.5-9mm tin (customizable) |
Air Pressure | 0.5-0.7MPa (clean, dry air) |
Machine Dimension | 2300×1700×1800mm (excluding twister/oven) |
Power Supply | AC220V |
Machine weight | Approx. 700 KG (excluding twister/oven) |
Standard component configuration | Servo/stepper motors (Inovance/Leadshine), TBI screws, HIWIN rails, Airtac cylinders, self-developed PLC, YIHEDA standard parts, Panasonic/Jiazhun sensors, Omron sensors, Hikvision vision system |
