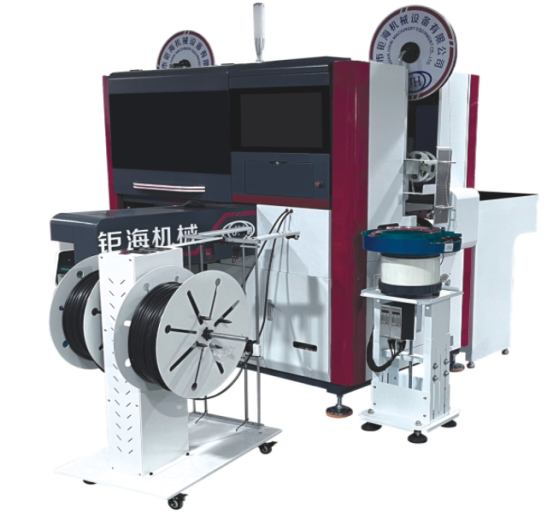

JH09B-CG Fully Automatic Dual-End Crimping with Mid-Tubing
JH09B-CG Fully Automatic Dual-End Crimping with Mid-Tubing
JH09B-CG Fully Automatic Dual-End Crimping with Mid-Tubing

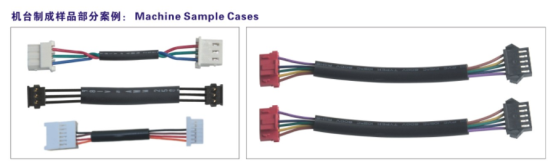

Product Highlight：
1、Automation:Auto wire feed/cut,dual-end crimping,mid-tubing,B-end twist/tinning with QC monitoring.
2、High Output:Processes up to 24 wires simultaneously via servo system.
3、Compatibility:0.8、1.0、1.2、1.25、1.5、2.0、2.5、3.96mm housings;wires/tubes (heat-shrink/PVC/tiberglass).
4、User-Friendly:Touchscreen operation,minimal training.
5、Quick Changeover:2P-20P housing(tool-less);minimal parts for tube/non-tube modes.
6、Reliability:Premium servo,HIWIN guides,TBl screws.
7、Auto-Sorting:OK/NG separation.
8、Optional Features:Twisting/housing marking Supports standard+custom orders.
Machine Main Specification：
Model | JH09B-CG Fully Automatic Dual-End Crimping with Mid-Tubing |
Standard Feature | Auto wire feed/cut; A/B-end strip, crimp & insert; mid-tubing; B-end switchable to twist/tin or partial strip |
Optional Function | Terminal crimp force monitor, Tubing arrangement function, Housing/Wire marking, Heat-shrink tube processing |
Inspections | Flux/Solder wire/Wire presence, Wire knot detection, Terminal/Housing presence, Air pressure alarm, Motor abnormality, CCD vision (strip quality, insertion status, color sequence) |
Production Capacity | 220-280 cycles/H (12 terminals/cycle, wire length ≤200mm). Varies by product. |
Cutting Length | Dual-insertion (no tube): 35mm-800mm; With mid-tubing: 60mm-800mm. Tube length: 40mm-700mm (Wire must be ≥ tube + 40mm) |
Cutting Accuracy | ±0.1mm + (Cutting Length x 0.1%) or less (Subject to wire material) |
Compatible Housing Pitch | 0.8, 1.0, 1.2, 1.25, 1.5, 2.0, 2.5, 2.54, 3.0, 3.96 (mm), etc. Single-layer housings, compatible with 2P-12P. |
Applicable Wire Range | AWG#32-AWG#18 |
Strip&Tin Dimensions | End-A/B Strip: 0-6mm; End-B Twist Length: 4-6mm; End-B Tin-dip Length: 0.5-6mm ( Customizable ) |
Air Pressure | 0.5-0.7MPa (clean, dry air) |
Machine Dimension | 1900mm x 2000mm x 1800mm (Excluding wire frame & oven) |
Power Supply | AC220V |
Machine weight | Approx. 980 KG (Excluding wire frame & oven) |
Main component configuration | Servo Motors (Inovance, Leadshine), TBI Ball Screws, HIWIN Linear Guides, AirTAC Cylinders, Self-developed PLC, YIHEDA Standard Parts, Sensors (Panasonic, CZ, Omron), Vision System (Hikvision) |
