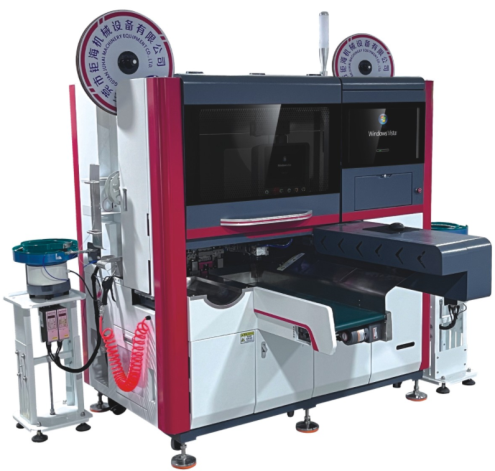

JH09B Fully Automatic Dual EndCrimping Machine
JH09B Fully Automatic Dual -End Crimping Machine
JH09B Fully Automatic Dual -End Crimping Machine

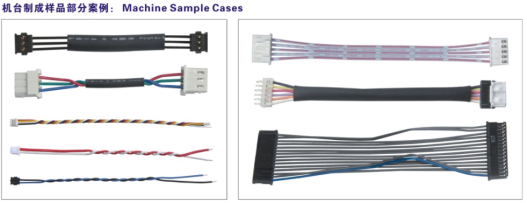

Product Highlight：
1、Automation:Auto wire feed/cut,dual-end crimping,B-end twist/tinning with integrated QC.
2、High Output:Processes upto 24 wires simultaneouslyvia servo system.
3、Compatibility :0.8、1.0、1.2、1.25、1.5、2.0、2.5、3.96 mm housings; supports multiple wire types.
4、User-Friendly:Touchscreen operation,minimal training required.
5、Quick Changeover:2P-2oP housing adaptation(tool-less).
6、Reliability:Premium servo,HIWIN guides,TBI screws.
7、Auto-Sorting:Identifies OK/NG products.
8、Customization:Optionaltwisting/markingforstandard/special orders
Machine Main Specification：
Model | JH09B Fully Automatic Dual -End Crimping Machine |
Standard Feature | Auto wire feed/cut;A/B-end:strip/crimp/insert(twist/tin optional) |
Optional Function | Pressure/Dinspection4/eveltwist,tubingmarking，lasercoding |
Inspections | Material detection,visioninspection(insertion/color) |
Production Capacity | Wires:350-400cycles/hr(24terminals/cycle,≤200mm)Ribboncables:280-300 cycles/hr(24terminals/cycle,≤200mm) |
Cutting Length | Dual-terminal wires:35-800mm(custom) Ribbon cables:60-800mm(custom) |
Cutting Accurancy | ±0.1mm+0.1%of length |
Case distance | 0.8-3.96mm (2P-12P) |
Wire range | AWG#32-AWG#18 |
Stripping/Tinning | A/B-end Strip:0-6mm B-end :4-6mm, conductor :0.5-6mm tin (customizable ) |
Air Pressure | 0.5-0.7MPa (clean, dry air) |
Machine Dimension | 1900×2000×1800mm(excl.twister/oven) |
Power Supply | AC220V |
Machine weight | About 980kg (excl.twister/oven) |
Main component configuration | Servo/steppermotors(Inovance/Leadshine),TBl screws,HIWINrails,Airtaccylinders,self-developed PLC, Omron/Hikvision sensors |
