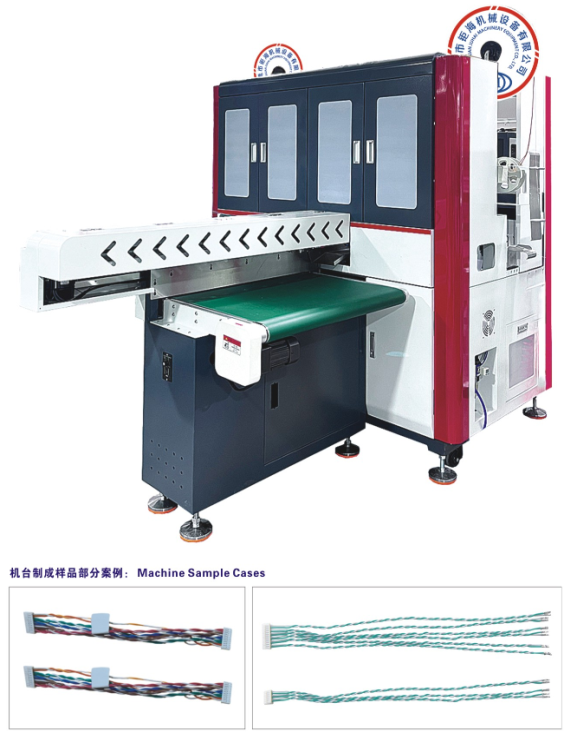

JH07B-6J Customized Dual-Crimp Single-Insert Twisting Machine
JH07B-6J Customized Dual-Crimp Single-Insert Twisting Machine
JH07B-6J Customized Dual-Crimp Single-Insert Twisting Machine
Product Highlight：
1、Automation-Auto wire feed/cut,dual-end crimping with mid-wire twisting(2-4 wires),A-end insertion,B-end twist/tinning,integrated QC.
2、High Output:Processes up to 24 wires simultaneously via servo system.
3、Compatibility 0.8、1.0、1.2、1.25、1.5、2.0、2.5、3.96mm housings;multiple wire types(AWG#32-#18).
4、User-Friendly-Touchscreen control,minimal training required.
5、Quick Changeover-2P-20P housing adaptation (tool-less).
6、Reliability-Premium components(servo,HIWIN guides,TBI screws).
7、Auto-Sorting-Identifies OK/NG products.
8、Customization-Optional marking functions for standard/special orders.
Machine Main Specification：
Model | JH07B-6J Customized Dual-Crimp Single-Insert Twisting Machine |
Standard Feature | Auto wire feed/cut; A-end: strip/crimp/insert; B-end: strip/crimp/twist (2-4 wires per pair) |
Optional Function | Terminal pressure detection, CCD inspection, wire arrangement, 4/6-level twisting, housing/wire marking |
Inspections | Flux/tin presence, wire presence/kinking, terminal/housing detection, air pressure alarm, motor fault, CCD vision (stripping, insertion, color sequence) |
Production Capacity | Electronic wires: 250–300 cycles/hr (12 terminals/cycle, ≤200mm) |
Twisting Parameters | A-end untwisted length: ≥15mm |
Wire Length | Non-twisted wires: 35–800mm (customizable) |
Cutting Accuracy | ±0.1mm + 0.1% of length |
Compatible Housing Pitch | 0.8, 1.0, 1.2, 1.25, 1.5, 2.0, 2.5, 2.54, 3.0, 3.96mm (2P–12P single-row housings) |
Applicable Wire Range | AWG#32-AWG#18 |
Strip&Tin Dimensions | A/B-end strip: 0–6mm |
Air Pressure | 0.5-0.7MPa (clean, dry air) |
Machine Dimension | |
Power Supply | AC220V |
Machine weight | Approx. 980 kg (excluding twister/oven) |
Main component configuration | Servo/stepper motors (Inovance/Leadshine), TBI ball screws, HIWIN rails, Airtac cylinders, self-developed PLC, Yihada standard parts, Panasonic/Jiazhun sensors, Omron sensors, Hikvision vision system |
