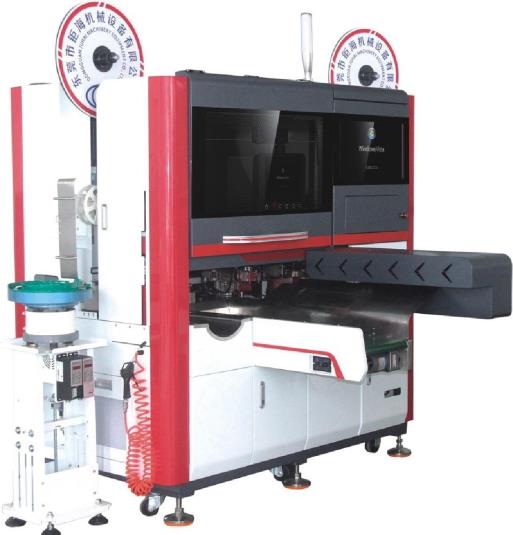

JH07B Fully Automatic Dual-Crimp Single-Insert Machine
JH07B Fully Automatic Dual-Crimp Single-Insert Machine
JH07B Fully Automatic Dual-Crimp Single-Insert Machine
Product Highlight：
1、Automation:Auto wire feed,cutting,dual-end crimping(A-end insertion,B-end twist/tinning) with integrated QC.
2、High Yield:Servo-driven,24-wire processing(350-400 cycles/h).
3、Compatibility: 0.8、1.0、1.2、1.25、1.5、2.0、2.5、3.96 mm housings;supports multiple wire types.
4、User-Friendly:Touchscreen operation,minimal training needed.
5、Quick Setup:Tool-less changeover for 2P-20P housings.
6、Reliable:Premium components(servo,HIWIN guides,TBl screws).
7、Auto-Sorting:Identifies OK/NG products.
8、Customizable:Optional twisting/marking functions..

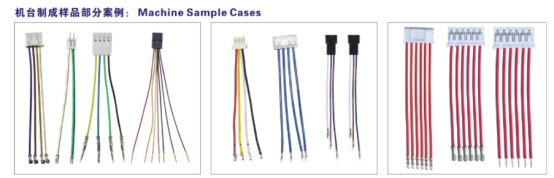

Machine Main Specification：
JH07B Fully Automatic Dual-Crimp Single-Insert Machine | |
Standard Feature | Auto wire feed/cut, A-end: strip/crimp/insert; B-end: strip/crimp (twist/tin/half-strip optional) |
Optional Function | Terminal pressure detection, CCD inspection, wire arranging, 4/6-level strand twisting, tubing, housing/wire marking, servo wire feeding, flat cable housing, laser marking, robotic loading, wrapping |
Inspections | Flux/tin presence, wire presence/kinking, terminal/housing detection, air pressure alarm, motor fault, CCD vision (stripping, insertion, color sequence) |
Production Capacity | Electronic wires: 350–400 cycles/hr (24 terminals/cycle, ≤200mm) |
Cutting Length | Dual-crimp/single-insert: 32–800mm (customizable) |
Cutting Accuracy | ±0.1mm + 0.1% of length |
Compatible Housing Pitch | 0.8, 1.0, 1.2, 1.25, 1.5, 2.0, 2.5, 2.54, 3.0, 3.96mm (2P–12P single-row housings) |
Applicable Wire Range | AWG#32-AWG#18 |
Strip&Tin Dimensions | A/B-end strip: 0–6mm |
Air Pressure | 0.5-0.7MPa (clean, dry air) |
Machine Dimension | 1900 × 2000 × 1800 mm (excluding twister/oven) |
Power Supply | AC220V |
Machine weight | Approx. 900 KG (Excluding wire frame & oven) |
Main component configuration | Servo/stepper motors (Inovance/Leadshine), TBI ball screws, HIWIN rails, Airtac cylinders, self-developed PLC, Yihada standard parts, Panasonic/Jiazhun sensors, Omron sensors, Hikvision vision system |
