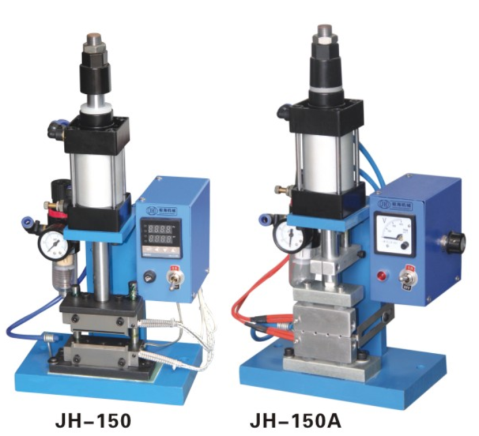

JH-150A Vertical Electric Heating Stripping Machine
JH-150A Vertical Electric Heating Stripping Machine
Product Highlights
1. This machine is specially designed for computer multi-core wires and various types of multi-core cables.
2. The cutting and stripping actions are completed in one cycle. It supports both single and dual blades for stripping, ensuring neat cuts without frayed or uneven nylon threads.
Machine Main Specification：
Model | JH-150 Vertical Core Wire Hot Stripping Machine | JH-150A Vertical Outer Sheath Hot Stripping Machine |
Power Supply | AC 220V 50Hz | AC 220V 50Hz |
Air Pressure | 4-5 kg/cm² | 4-5 kg/cm² |
Dimensions (L×W×H) | 440 × 260 × 200 mm | 440 × 260 × 200 mm |
Weight | 13 kg | 13 kg |
Temperature | Up to 300°C | Up to 300°C |
