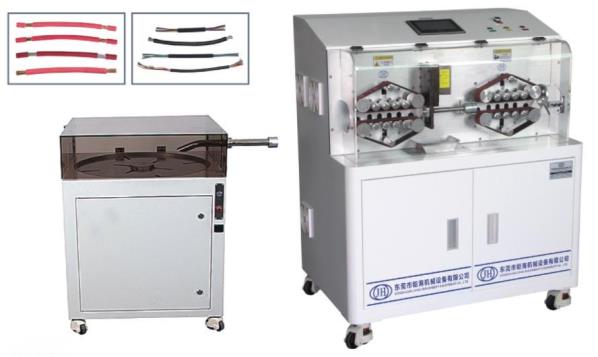

JH-150PF-240PF Large Cable Cutting & Stripping Machine
JH-150PF-240PF Large Cable Cutting & Stripping Machine
Product Features:
* Equipped with 8-wheel simultaneous drive and servo motors, ensuring higher efficiency and faster operation!
* Features twice the power of conventional cable stripping machines, with an output rate 2-3 times that of standard strippers, significantly saving labor costs.
* Our self-developed fully automatic computer-controlled wire stripping machine integrates high-speed microprocessors with advanced motion control technology.
* Ideal for processing large power cables, electrical cables, sheathed wires, and both flexible and rigid wires.
* Produces wire harnesses with consistent length, neat appearance, and optimal stripping results.
* Specifically designed for the power industry, control cabinet wiring, battery box wiring, new energy vehicle harnesses, charging pile harnesses, charging gun harnesses, BV rigid wires, and BVR flexible wires.
* Capable of cutting and stripping entire wire coils to required lengths and strip dimensions, greatly enhancing efficiency. Maximum processing capacity: up to 240 mm² wires.
Machine Main Specification：
Model | JH-150PF Large Cable Cutting & Stripping Machine | JH-240PF Large Cable Cutting & Stripping Machine |
Working Power | AC 220V 50/60Hz | AC 220V 50/60Hz |
Cutting Length | 60 mm - 99,999 mm | 100 mm - 99,999 mm |
Front End Stripping Length | 1 - 450 mm | 1 - 500 mm |
Rear End Stripping Length | 1 - 230 mm | 1 - 350 mm |
Conduit Diameter | Inner Hole: φ12, φ16, φ21, φ26, φ32 mm | Inner Hole: φ45, φ40, φ35, φ30, φ25, φ20 mm |
Compatible Wire Diameter | 10 mm² - 150 mm² Cables & Wire Harnesses | 25 mm² - 240 mm² Cables & Wire Harnesses |
Cutting Tolerance | ≤ 0.2% | ≤ 0.2% |
Processing Speed | 300 - 500 PCS/H | 100 - 300 PCS/H |
Blade Material | Imported High-Speed Steel | Imported High-Speed Steel |
Power | 1500 W | 2000 W |
Driving Method | 8-Wheel Independent Drive, Silent Servo Motor | 28-Wheel Independent Drive, Silent Servo Motor |
Dimensions (W×L×H) | 1000 × 600 × 1090 mm | 1600 × 810 × 1360 mm |
Winding Device (Optional) | Large: Coil Diameter 200-680 mm | |
Body Weight | Approx. 220 kg | Approx. 350 kg |
