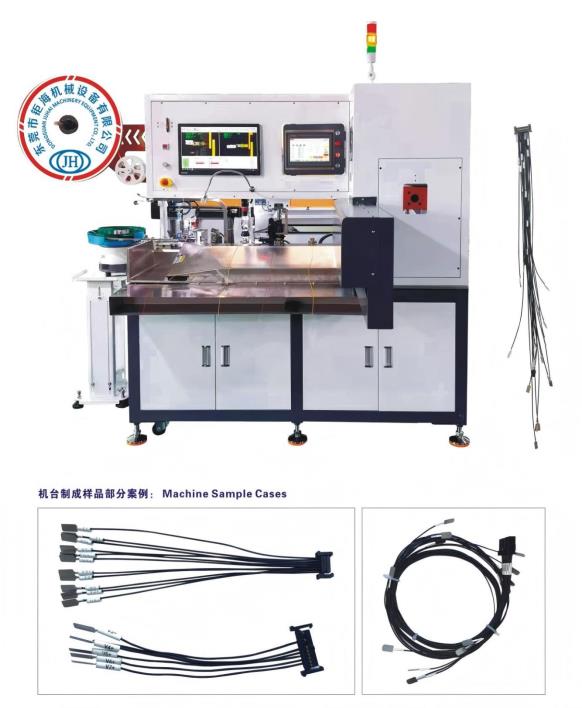

JH-850CK-CG-JG Automatic Tube Piercing Laser Marking Single Head End Insertion Shell Machine

JH-850CK-CG-JG Automatic Tube Piercing Laser Marking Single Head End Insertion Shell Machine

JH-850CK-CG-JG Automatic Tube Piercing Laser Marking Single Head End Insertion Shell Machine

Product Highlight：

This device can achieve automatic wire cutting,stripping,threading of number tubes,laser coding,half stripping,crimping of terminals,automatic stripping and crimping of the other end,CCD terminal detection,and threading of rubber shells.

Note:Personalized wire harness processing solutions and non-standard customized equipment can be provided based on product process characteristics.

Description of defect rate setting:

1.Alarm shutdown:Whether there are wires,wire knots,terminals,rubber seats,and the defect rate setting exceeds the standard.

2.Alarm selection to continue production:abnormal peeling,abnormal terminal pressure,terminal pullback detection,and failure rate setting not exceeding

the standard.

Functions:

1.Automatic feeding of bulk rubber shells by vibrating discs;

2.Simple design,easy operation,and convenient debugging;

3.Changing product specifications is simple and takes short time;

4.Universal wire feeder for gifted roll axis;

5.Each P can freely set the wire cutting length and stripping length;

6.Adopting Huichuan servo motors,drivers,and control systems;

7.Equipped with pressure monitoring and CCD visual inspection;

8.Automatic selection of equipment and isolation of defective products in the manufacturing process;

9.Perform a 100%pull test on the terminal insertion.

Machine Main Specification：
