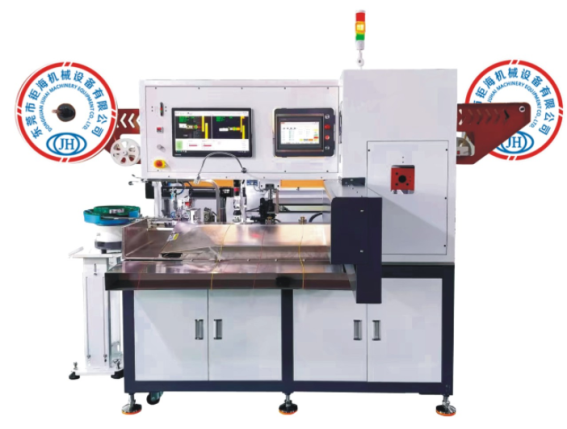

JH-860CK Fully automatic double end single end shell insertion machine
JH-860CK Fully automatic double end single end shell insertion machine
JH-860CK Fully automatic double end single end shell insertion machine

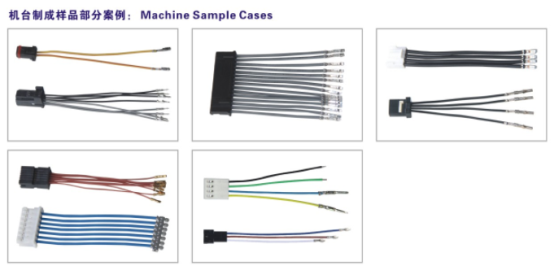

Product Highlight：
This device can achieve automatic cutting,stripping,terminal pressing,automatic cutting, stripping, twisting,termination,and tinning functions on one end of the wire,as well as on the other end of the rubber shell.
Note:Personalized wire harness processing solutions and non-standard customized equipment can be provided based on product process characteristics.
Description of defect rate setting.
1.Alarm shutdown:Whether there are wires,wire knots,terminals,rubber seats,and the defect rate setting exceeds the standard.
2.Alarm selection to continue production:abnormal peeling,abnormal terminal pressure,terminal pullback detection,and failure rate setting not exceeding
the standard.
Functions:
1.Automatic feeding of bulk rubber shells by vibrating discs;
2.Simple design,easy operation,and convenient debugging;
3.Changing product specifications is simple and takes short time;
4.Universal wire feeder for gifted rollaxis;
5.Each P can freely set the wire cutting length and stripping length;
6.Adopting Huichuan servo motors,drivers,and control systems;
7.Equipped with pressure monitoring and CCD visual inspection;
8.Automatic selection of equipment and isolation of defective products in the manufacturing process;
9.Perform a 100%pull test on the terminal insertion.
Machine Main Specification：
Model | JH-860CK Fully automatic double end single end shell insertion machine |
Power Supply | AC 220V, Maximum power: 2KW |
Air Pressure | 0.5-0.7 MPa (requires clean, dry air) |
Weight | Approx. 600 kg |
Dimensions (L×W×H) | 2450 × 1300 × 2120 mm (excluding wire feeder and vibratory bowl) |
Loading Method | Vibratory bowl (housing), wire feeder (wire), motor (solder wire/flux) |
Standard Functions | A-end: half/full strip, twist, tin dip, switchable crimping |
Optional Components | Terminal pressure monitoring, CCD visual inspection |
Wire Range | AWG #18–#24 or AWG #22–#30 (up to 10 colors simultaneously) |
Processing Length | 45–1000 mm (customizable) |
Cutting Accuracy | ±0.5mm + 0.2% of length |
Stripping Length | A-end: 0–6.0mm; B-end: 0–10.0mm |
Twisting Length | 3–10 mm |
Tinning Length | 0–10 mm |
Crimping Force | 2.0T (customizable) |
Max. PIN Count | Single-row 20 positions, max. 3 rows (housing width <40mm) |
Max. Color Count | 10 colors (customizable for more) |
Housing Dimensions | Max: 40×25×25 mm; Min: 5×6×3 mm |
Production Efficiency | 2,000–2,500 holes/hour (varies by wire length) |
Detection Functions | Wire presence/kinking, terminal presence, stripping defects (>20mm), pressure monitoring, pull-force test, housing presence, defect rate setting |
Key Features | • Vibratory bowl automatic housing feeding |
