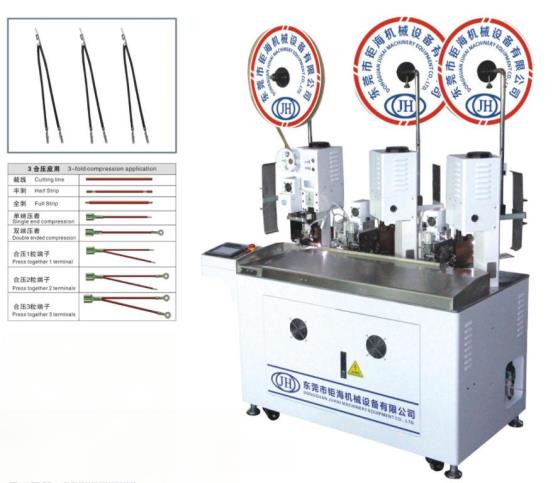

JH-3302 3308 fully automatic double head＆three head compression terminal machine
JH-3302 fully automatic double head crimping terminal machine
JH-3308 automatic three head compression terminal machine
JH-3302 fully automatic double head crimping terminal machine
JH-3308 automatic three head compression terminal machine
Product Highlight：
1. One end features consolidated crimping (multiple wires into one terminal), while the other end performs individual wire crimping.
2. Multi-wire combined crimping capability, adaptable to various application requirements.
3. Encoder-based wire feed compensation ensures highly precise stripping with minimal error.
4. High-end servo motor drive system delivers superior performance and reliability.
Machine Main Specification：
JH-3302 Fully Automatic Dual-Head Combined Crimping Machine | JH-3308 Fully Automatic Triple-Head Combined Crimping Machine | |
Configuration | Dual-wire, Both ends crimped | Dual-wire, Three ends crimped |
Wire Range | AWG #16 - #28 | |
Terminal Type | Standard horizontal/vertical continuous terminals | |
Applicable Dies | OTP horizontal/vertical dies | |
Processing Length | 50-999 mm | |
Production Rate | ~4,000 PCS/hour (≤100mm length) | |
Cutting Accuracy | ±0.2mm + 0.2% × L (L = Cutting Length) | |
Stripping Length | 0-10 mm | |
Power Supply | AC 220V 50Hz | |
Air Supply | 0.6-0.8 MPa | |
Rated Power | 2.3 kW | 2.5 kW |
Dimensions (W×L×H) | 1200 × 800 × 2000 mm | 1400 × 1300 × 2000 mm |
