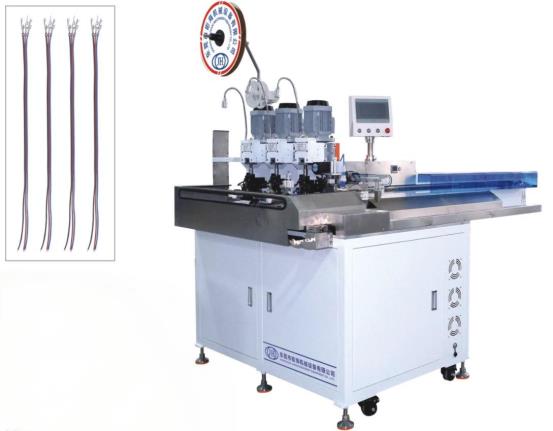

JH-5503T Fully Automatic Three Head Cable Automatic Machine
JH-5503T Fully Automatic Three Head Cable Automatic Machine
JH-5503T Fully Automatic Three Head Cable Automatic Machine
Product Highlight：
1.Fully automatic computer debugging,color touch screen operation;
2.The cutting length,peeling knife value,peeling length,wire length,
and riveting depth are all computer-controlled;
3.Precision parts adopt servo control;
4.Precision components adopt imported screw rods and guide rails;
5.Pneumatic components are made of Yadeke,Huichuan,and Xingchen;
6.The detector adopts imported infrared radiation;
7.Missing wire detection,low air pressure,presence or absence of wires,presence or absence of terminals,motor alarm.
Machine Main Specification：
JH-5503T Fully Automatic Three Head Cable Automatic Machine | |
Power Supply | AC 220V 50/60Hz Single-phase |
Air Supply | 0.6–0.7 MPa |
Standard Functions | Automatic wire feeding, Fixed-length cutting, Full/Half stripping at both ends (A & B), Cable spreading at both ends (A & B), Terminal crimping at A-end, Tinning at B-end |
Wire Range | Ribbon Cable #20AWG – #28AWG (Other specifications customizable) |
Cutting Length | 50–800 mm (Other specifications customizable) |
Stripping Length | A-end: 0.5–6 mm; B-end: 0.5–9 mm (Other specifications customizable) |
Tinning Length | B-end: 0.5–9 mm |
Detection Functions | Low air pressure alarm, Wire presence detection, Motor alarm |
Machine Dimensions (L×W×H) | 2470 × 1400 × 1700 mm (excluding protrusions) |
Weight | Approx. 600 kg |
